Teza
80 Series Folding Door
Aluminum Thermal Break
Teza 80 Series

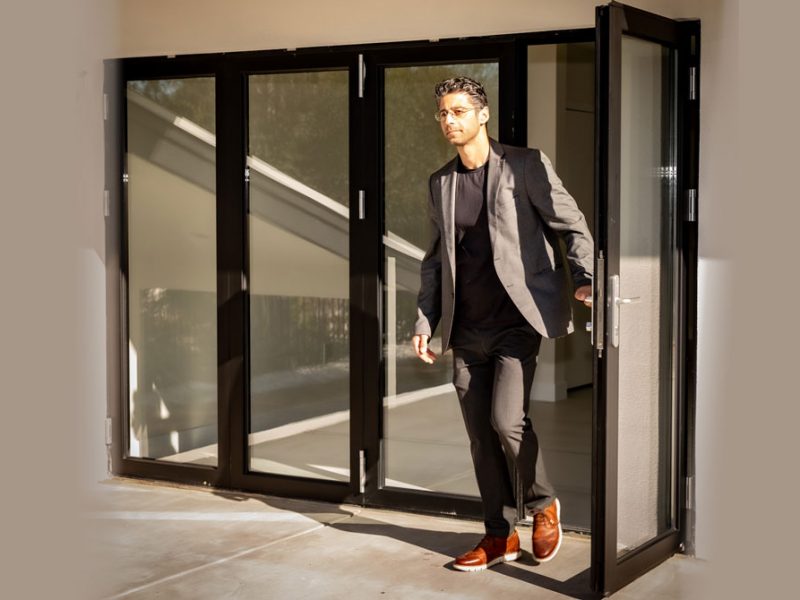

Teza Doors highlights any personal style with the luxurious 80 Series Bifold Door. Additionally, the 80 Series bifold door contains thermal break aluminum with polyamide bars. As a result, this prevents the exchange of temperature from one side to another. In addition, the doors handles compliment the door and any living space beautifully. Furthermore, Teza’s bifold door provides qualities that enhance garden parties, barbecues, and outdoor dining experiences. Moreover, the 80 Series Bifold Door has features making it air tight and perfect for various climates. The bifold doors are customizable and can have stationary panels as well as panels that all slide to one side depending on the desired configuration. Teza Bifold Doors adds modern style, beauty, and value, to any home. Comparatively, Teza’s customizable options allows customers to add more features or replace an existing door. With Teza’s high quality bifold door, the 80 series is perfect for luxury and accommodates multiple climates with the additional thermal break aluminum. Undoubtedly, customers have a variety of features to choose from to create a luxurious and open living space.
Teza 80 Series Gallery
Features
The size of the panels varies between 24” and 42”. In addition, in compliance with the build code, the stationary door minimum is 26”. Furthermore, each frame is 2 3/4” (panel frame thickness) by 2 1/2″ (panel frame width). Moreover, each panel has 4 weather strips which makes the folding doors airtight. The panel strips create a barrier between the inside and outside door frames.
Teza 80 series are made of thermal break aluminum. Additionally, the frames bottom track from outside is 1-3/4″ height and from inside is 2″ height. Most importantly, this feature helps prevent the entrance of water. All frames have powder coating paint. This makes it scratch and chip resistant. Moreover, the frame is very sturdy for any weather condition.
INSULATED DOUBLE GLAZING
All bifold glasses are E-Glass (UV) series. This product includes double tempered glass filled with argon gas. In addition, each pane is 5mm. Furthermore, laminated tempered glass is recommended for extreme weather conditions. Teza thermal break bifold doors have shatter resistant property. Moreover, it provides protection to any home. Teza Doors offers tinted tempered glass. This includes heat absorbing technology that eliminates heat transfer. Energy cost savings. The airtight construction of double glazed windows creates thermal insulation. This reduces the flow of incoming and outgoing heat. Less energy is used to heat up or cool down the space, resulting in lower energy bills. Double glazed windows are tougher to break than single pane windows, so they increase the security of the home.
TEMPERED GLASS
Tempered or toughened glass is a type of safety glass processed by con-trolled thermal or chemical treatments to increase its strength compared with normal glass. Tempering puts the outer surfaces into compression and the inner surfaces into tension. Such stresses cause the glass, when broken, to crumble into small granular chunks instead of splintering into jagged shards as plate glass (aka: annealed glass) creates. The granular chunks are less likely to cause injury.
LAMINTED GLASS
Laminated glass consists of a tough plastic interlayer made of polyvinyl butyral (PVB) bonded between two panes of glass under heat and pressure. Once sealed, the glass sandwich behaves as a single unit and looks like normal glass. Laminat-ed glass provides durability, high-performance, and multi-functional benefits while preserving aesthetic appearance.
TINTED GLASS
Tinted glazings retain their transparency from the inside, although the brightness of the outward view is reduced and the color is changed. The most common colors are neutral gray, bronze, and blue-green, which do not greatly alter the per-ceived color of the view and tend to blend well with other architectural colors.
Insulating glass built-in shutter doors and windows are composed of double-layer tempered glass and shutters. The curtains built into the double glass can be controlled manually by a magnetic device or remotely controlled by a built-in motor. The light entering the room can be controlled by adjusting the angle of the venetian blinds. There is no doubt that louver doors and windows are ideal products to solve the problem of shading. Insulating glass built-in shutter doors and windows not only save space, but also have heat preservation and noise prevention functions, and at the same time give buildings and interiors a novel vision. Regardless of summer or winter, as long as you adjust the angle of the shutters, you can achieve shading or lighting effects, which greatly reduces the energy consumption of air conditioner
For more information & videos check below links:
Teza Doors offers customizable options at no additional cost. Moreover, customers have access to any doors regardless of swing direction and folding orientation.
Teza 80 Series Configuration Options:
2+0, 0+2, 3+0, 0+3, 3+1, 1+3,4+0, 0+4, 5+0, 0+5, …
Teza doors complies with the Energy Code. Furthermore, we comply with California Title 24 which focuses on energy efficiency tested by the 3rd party lab. Additionally, it is in process of getting compliance with NFRC lab.
SHGC rating: 0.32
U-Factor: 0.26
Teza 80 Series Bifold Doors Details
The 80 Series bifold door has frames and panels that contain thermal break aluminum with polyamide bars. In addition, the thermal break bifold doors have insulation that minimizes the transfer of temperature from one side to another. As a result, thermal break doors play an important role in stabilizing indoor temperatures due to the air tight seal. Undoubtedly, this feature eliminates thermal energy loss.
- Teza 80 series folding door specification
- Teza 80 series folding door installation instruction
- Teza 80 series folding door CAD file
