Teza

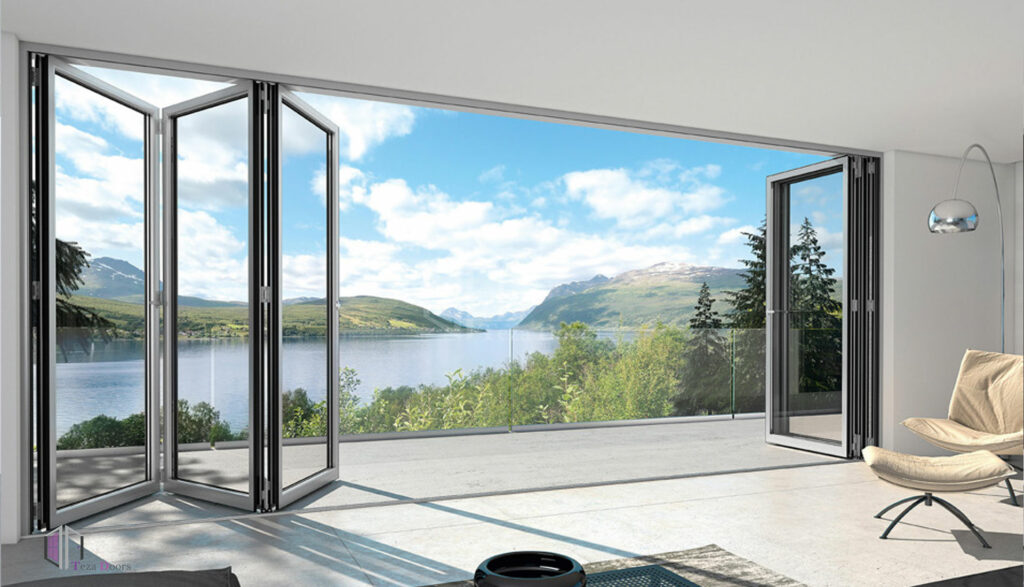

75 Series Bifold Door

Most Updated folding Door in Market

Teza 75 Series Characteristic:

Teza 75 Series bifold door contains thermal break aluminum with polyamide bars. In addition, thermal break bifold doors have insulation that minimizes the transfer of temperature from one side to another. Therefore, thermal break doors play an important role in stabilizing temperature. Undoubtedly, this feature eliminates thermal energy loss.
Previous
Next
+ High Quality Weather Strips
+ Powder Coated Paint

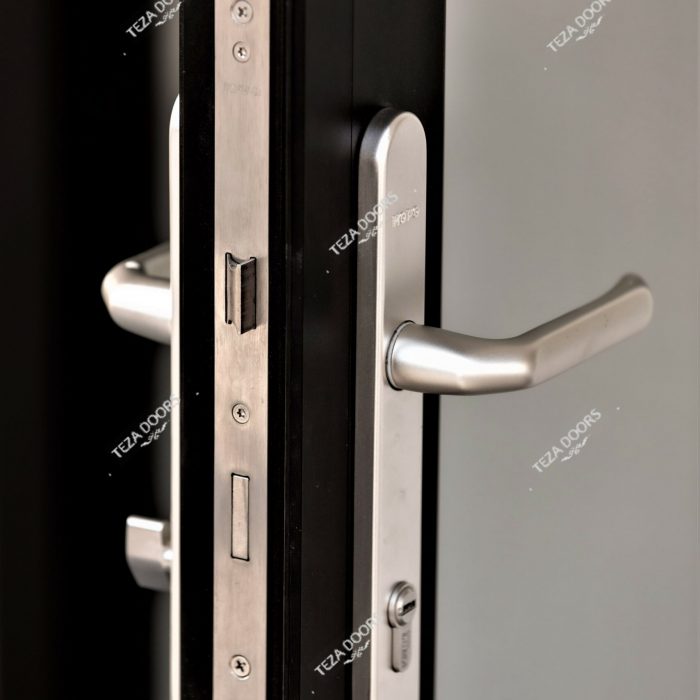

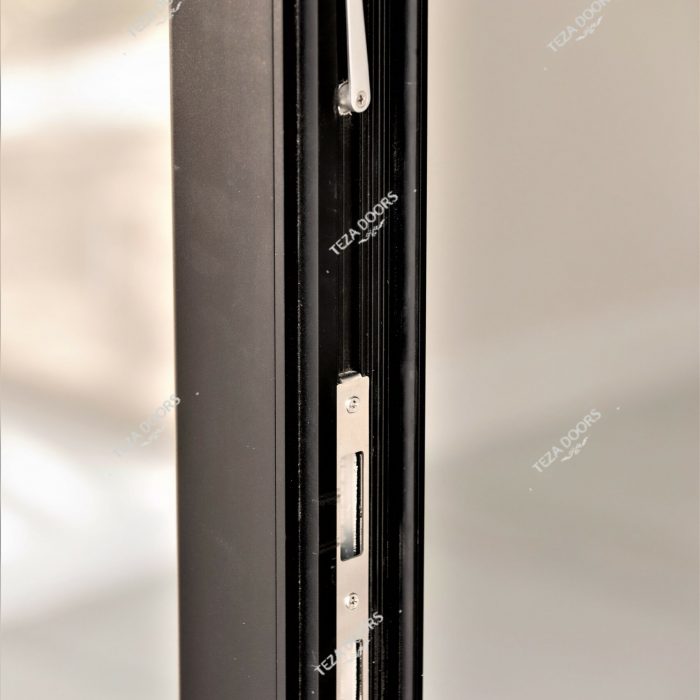

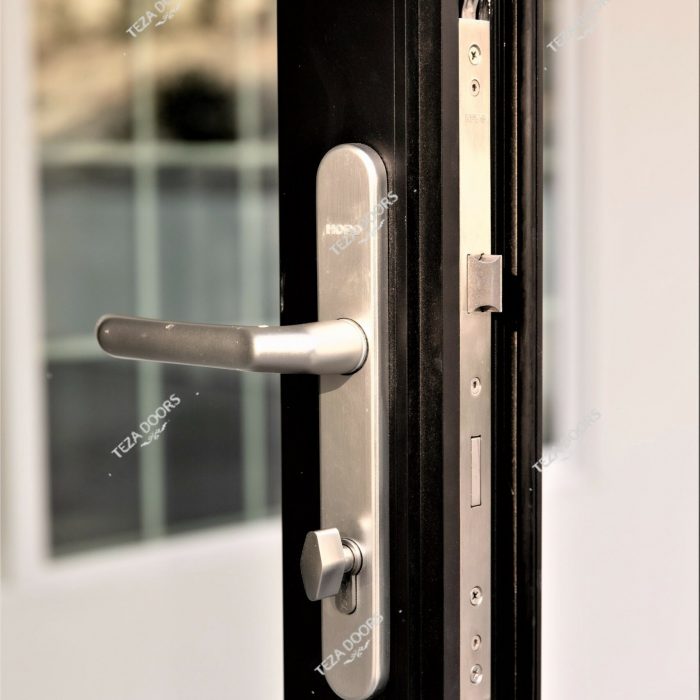

+ Three Point Lock System
+ Energy Efficient
+ Aluminum Thermal Break

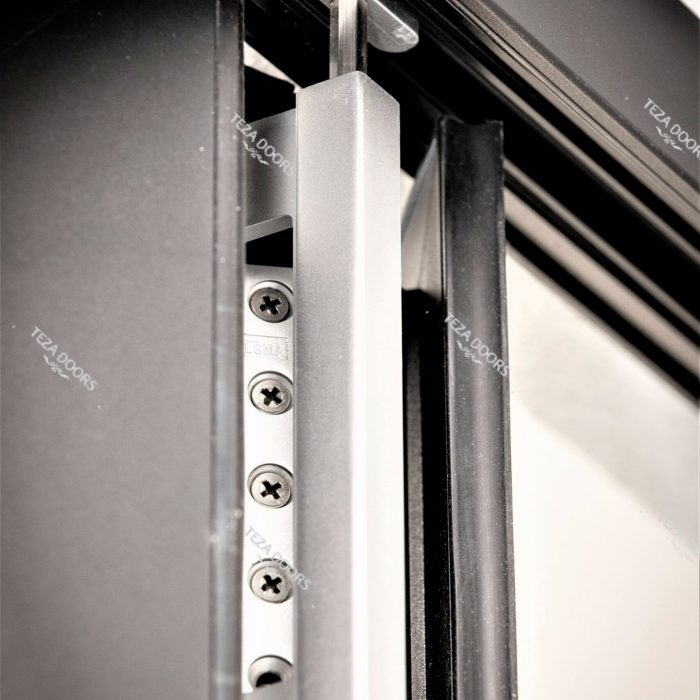

+ Heavy Duty Hardware

Features

The size of the panels varies between 24” and 40”. In addition, in compliance with the build code, the entrance door minimum is 26”. Furthermore, each frame is 2 5/8″ (panel frame thickness) by 3″ (panel frame width). Moreover, the panels have high quality weather strips. The panel strips create a barrier between the inside and outside door frames.

Teza 75 Series Bifold Door Details

Teza 75 series are made of aluminum. Additionally, the frames bottom track is 1″ height and depth is 3″ , this feature helps prevent the entrance of water and flush with flooring. All frames have powder coating paint. This makes it scratch and chip resistant. Moreover, the frame is very sturdy for any weather condition.



TEZA 75 SERIES FRAME DETAIL

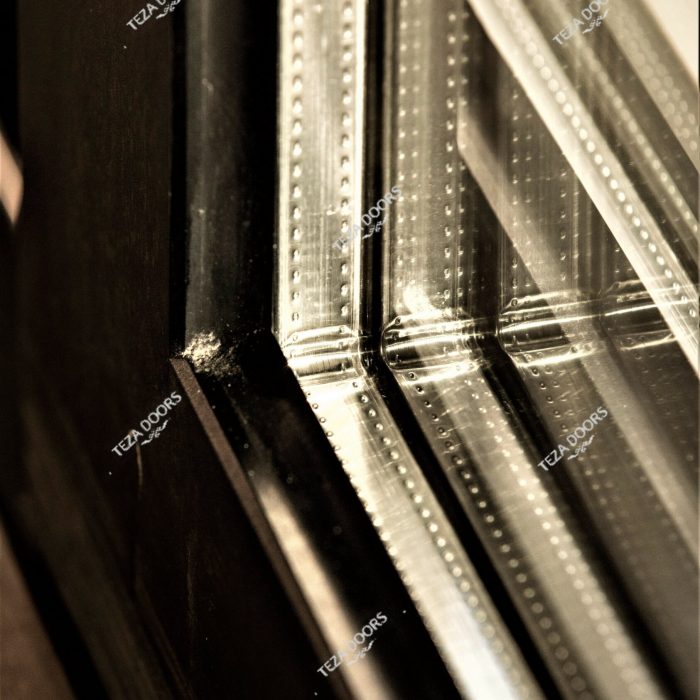

INSULATED DOUBLE GLAZING

All bifold glasses are E-Glass (UV) series. This product includes double tempered glass filled with argon gas. In addition, each pane is 5mm. Furthermore, laminated tempered glass is recommended for extreme weather conditions. Teza thermal break bifold doors have shatter resistant property. Moreover, it provides protection to any home. Teza Doors offers tinted tempered glass. This includes heat absorbing technology that eliminates heat transfer. Energy cost savings. The airtight construction of double glazed windows creates thermal insulation. This reduces the flow of incoming and outgoing heat. Less energy is used to heat up or cool down the space, resulting in lower energy bills. Double glazed windows are tougher to break than single pane windows, so they increase the security of the home.

TEMPERED GLASS

Tempered or toughened glass is a type of safety glass processed by con-trolled thermal or chemical  treatments to increase its strength compared with  normal glass. Tempering puts the outer surfaces  into compression and the inner surfaces into tension. Such stresses cause the glass, when broken, to crumble into small granular chunks instead of splintering into jagged shards as plate glass (aka: annealed glass) creates. The granular chunks are less likely to cause injury.

LAMINTED GLASS

Laminated glass consists of a tough plastic interlayer made of polyvinyl butyral (PVB) bonded  between two panes of glass under heat and  pressure. Once sealed, the glass sandwich behaves as a single unit and looks like normal  glass. Laminat-ed glass provides durability, high-performance, and multi-functional benefits while  preserving aesthetic appearance.

TINTED GLASS

Tinted glazings retain their transparency from the inside, although the brightness of the outward view is reduced and the color is changed. The most common colors are neutral  gray, bronze, and blue-green, which do not  greatly alter the per-ceived color of the view and tend to blend  well with other architectural colors.

GLASS BUILT IN BLIND

Insulating glass built-in shutter doors and windows are composed of double-layer tempered glass and shutters.The curtains built into the double glass can be controlled manually by a magnetic device or remotely controlled by a built-in motor. The light entering the room can be controlled by adjusting the angle of the venetian blinds. There is no doubt that louver doors and windows are ideal products to solve the problem of shading. Insulating glass built-in shutter doors and windows not only save space, but also have heat preservation and noise prevention functions, and at the same time give buildings and interiors a novel vision. Regardless of summer or winter, as long as you adjust the angle of the shutters, you can achieve shading or lighting effects, which greatly reduces the energy consumption of air condition

Insulating glass built-in shutter doors and windows are composed of double-layer tempered glass and shutters. The curtains built into the double glass can be controlled manually by a magnetic device or remotely controlled by a built-in motor. The light entering the room can be controlled by adjusting the angle of the venetian blinds. There is no doubt that louver doors and windows are ideal products to solve the problem of shading. Insulating glass built-in shutter doors and windows not only save space, but also have heat preservation and noise prevention functions, and at the same time give buildings and interiors a novel vision. Regardless of summer or winter, as long as you adjust the angle of the shutters, you can achieve shading or lighting effects, which greatly reduces the energy consumption of air conditioner

For more information check below links:

Manual System Blind

Electrical System Blind

Teza Doors offers customizable options at no additional cost. Moreover, customers have access to any doors regardless of swing direction and folding orientation.

Configuration options for 75 Series :

3+0 , 0+3, 1+3, 3+1, 5+0, 0+5, …

Teza Door Bifold Configuration

Teza doors complies with the Energy Code. Furthermore, we comply with California Title 24 which focuses on energy efficiency tested by the 3rd party lab. Additionally, it is in process of getting compliance with NFRC lab.

SHGC rating: 0.32

U-Factor: 0.26

Teza Sill Pan made of aluminum with powder coated paint. The sill pan height is same as bifold door’s bottom track.



Teza 75 series bifold door sill pan

Teza 75 series bifold patio door installation document:

Click Here

Teza 75 Series Thermal Break Folding Door Details

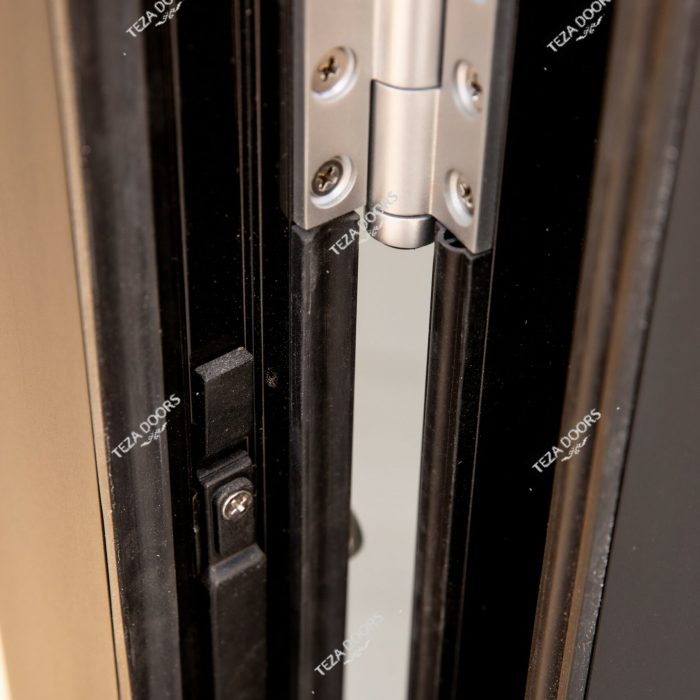

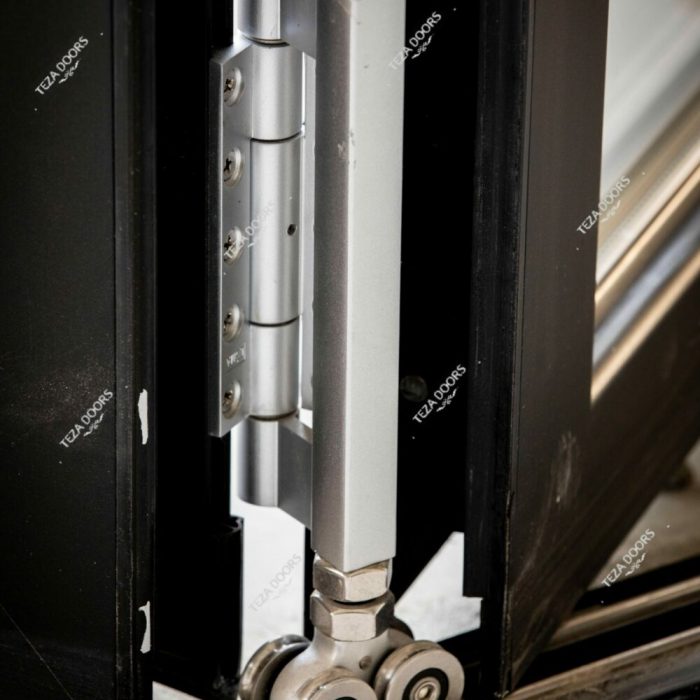

Teza 75 Series folding doors contain thermal break aluminum with polyamide bars. In addition, thermal break 75 series folding doors have insulation that minimizes the transfer of temperature from one side to another. Therefore, thermal break doors play an important role in stabilizing temperature. Undoubtedly, this feature eliminates thermal energy loss. Additional, all hinges are adjustable.
